PT. IMPERINDO SARANA is a complete Airport Equipment Supplier servicing especially for DGAC Indonesia. We are proud of the relationships with our clients and invite manufacture to support our project.

  REIL RTIL ALSF Runway End Identifier Light
    3.0   3.0.1

Related Standards

  • FAA AC 150/5345-51 E-849
  • ICAO Annex 14 Vol. I Para. 5.3.8
  • STANAG 3316




APPLICATIONS

  • In high intensity precision approaches
  • In identifying extension of runway centerline, sequenced flashing and in identifying runway threshold, simultaneous flashing



IMPORTANT FEATURES
  • A simple electronic system is used to adjust the flashing sequence.
  • Simultaneous or sequenced firing
  • Thanks to simple wiring flashing sequence of the full system can be controlled with a single 2-core cable.
  • Lights can be mounted on Aluminium columns with an outer diameter of 60mm.
  • Lamp body and other parts have electrostatic powder coating
  • The color is aviation yellow. Hardware, screws, washers and bolts are made of stainless steel
  • The light has an assembly for angle adjustment
  • Silicone rubber gasket is used to provide watertightness
  • Safety switch cuts off the power of control cabinet when light needs to be re-lamped.

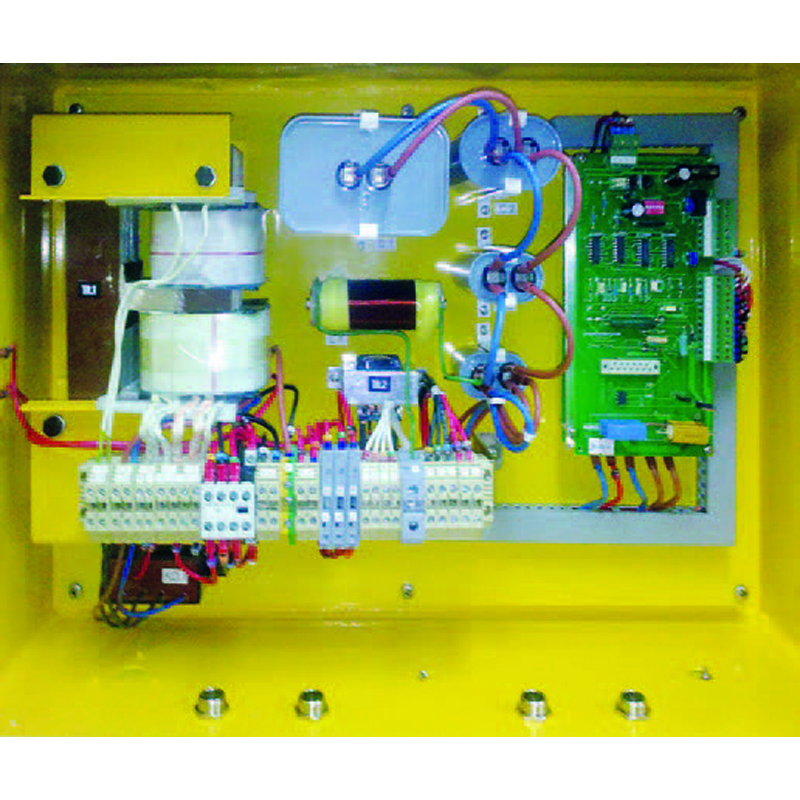

  • The light has a trigger transformer and a terminal block for incoming cables
  • The lamp has a minimum life of 500 hours
  • The light weighs 35 kg with control cabinet
