PT. IMPERINDO SARANA is a complete Airport Equipment Supplier servicing especially for DGAC Indonesia. We are proud of the relationships with our clients and invite manufacture to support our project.

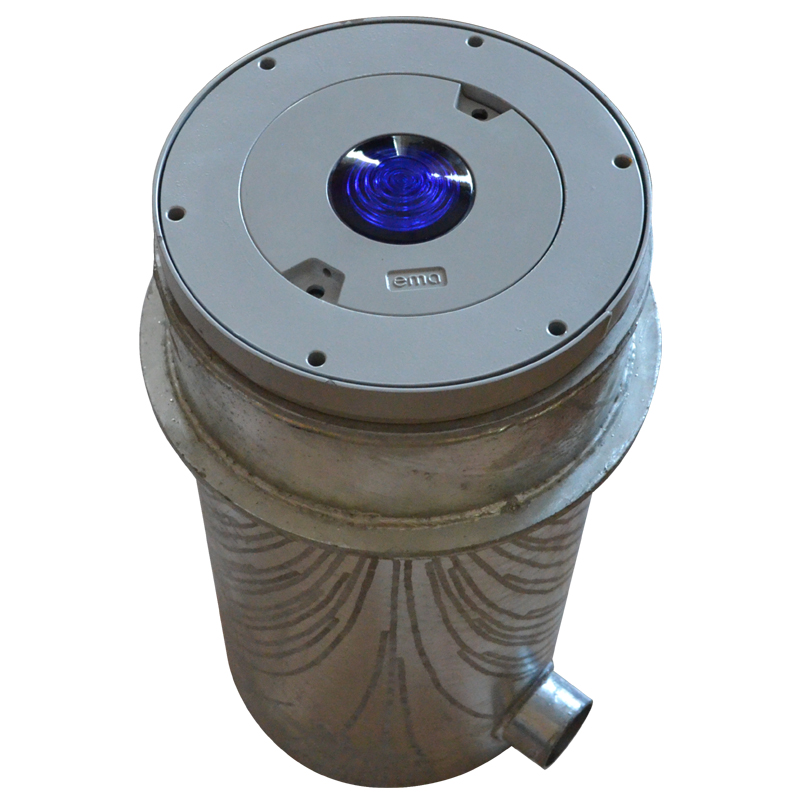

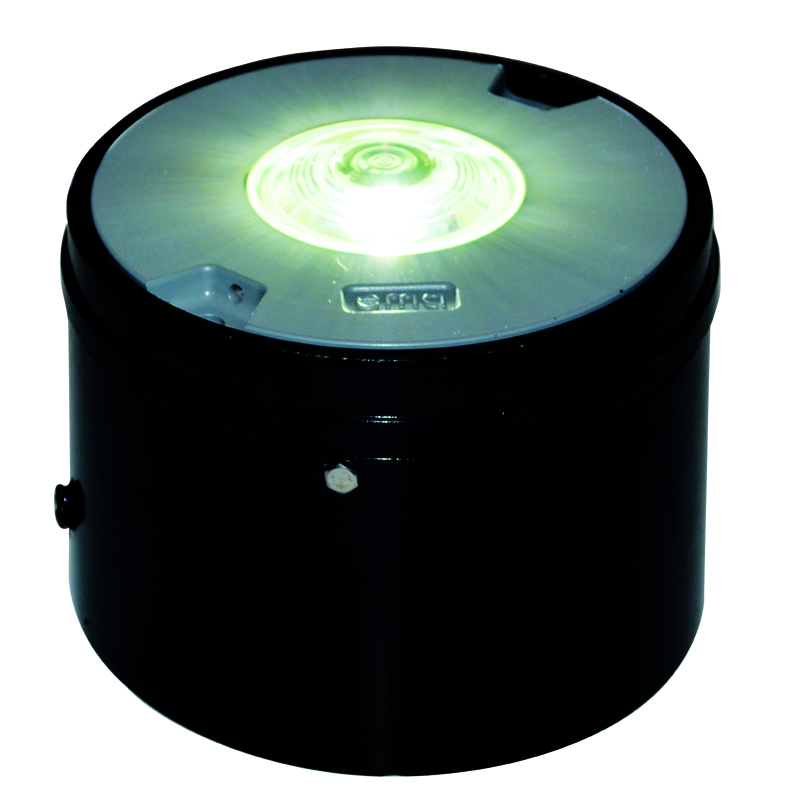

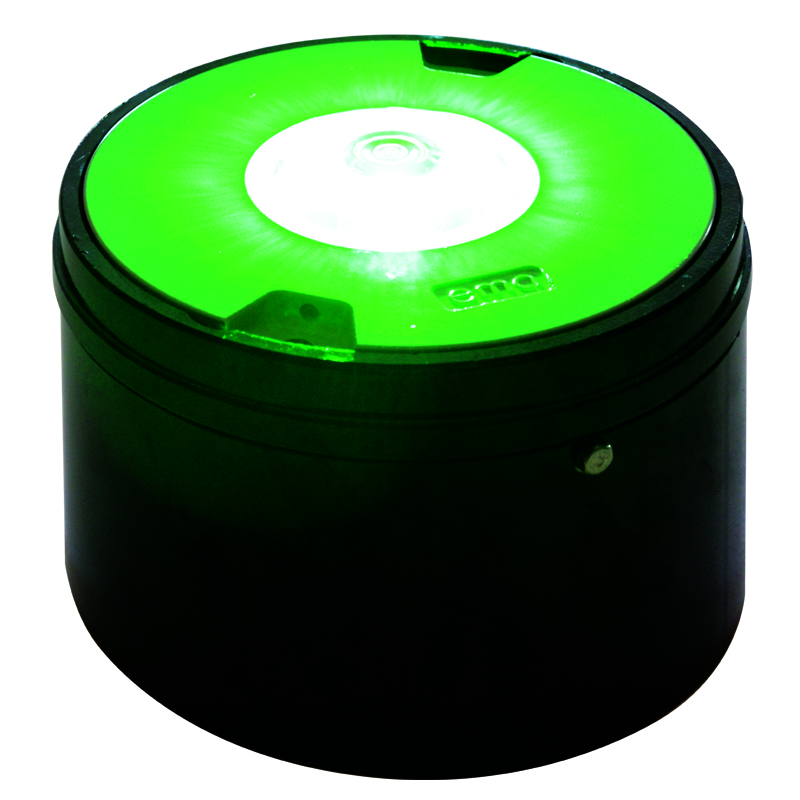

  T2045B 8 Inch Inset Taxiway Edge Light
    2.4.1   2.4.2   2.4.3   2.4

Related Standards

  • FAA AC 150/5345-46 L-850C
  • ICAO Annex 14 Vol. I Para. 5.3.9
  • IEC TS 61827
  • STANAG 3316



APPLICATIONS

  • As bidirectional high intensity runway edge light in CAT I, II & III conditions



IMPORTANT FEATURES
  • ETL Certified (L850C-RELI-3-2-105W/W)
  • IEC TS 61827 Certified
  • Member of an extensive range of FAA Approved 12 inch diameter inset lights
  • Equipped with two 105 W 6,6 A halogen pre-focused reflector lamps
  • Long lamp life 1000 hours at full intensity (6.6 A) increases to 2000-4000 hours in practice as the light usually operates at lower intensities.
  • Needs very little maintenance with its aluminium body and optics, high temperature resistant wiring, gasket and front glass and stainless steel screws
  • Lamp can be changed from the back easily without removing the reflector and front glass, no special equipment is needed
  • Optical adjustment is done easily by two screws
  • Low rising smooth outer surface
  • Can be installed directly on a 12 inch shallow base or on a L-868 Size B deep base or by means of an adapter ring on a L-868 Size C deep base
